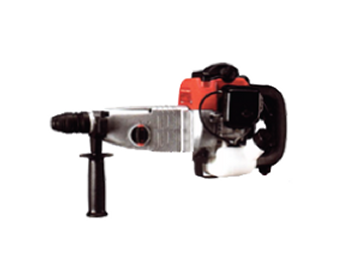

CTR-30QCC - Gas Powered SDS Hammerdrill

(Part #: 107)

• - Uses regular SDS bits from 1/4" to 1 1/8 in diameter.
• - Features three modes: DRILL, DRILL/HAMMER, HAMMER ONLY.
• - 2-Stroke gas powered motor for providing great power performance.
• - Hand pull start system for offering high flexibility and easy operation.
• - Sturdy metal construction for providing long service life.
• - Rubber-plastic handle for easy holding. Reduce recoil of the machine.
• - Ideal for drilling/chipping granite, rock, ground, asphalt, concrete, etc...

Tool Weight: 6 kg (13 lbs)
Max Engine Power: 0.7/7500
Fuel Type: Petrol/Oil - 30:1
Percussion Rate (1/Min): 4800
Rotary Hammer Speed: 900
Max Drill Diameter: 30 mm (1.18 inches)
Parts Manual

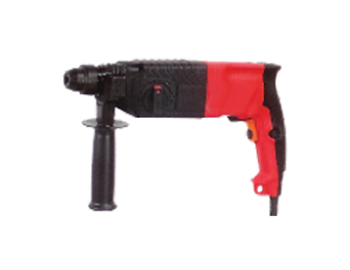

CTR-2403 - SDS-Plus Electric Hammerdrill

(Part #: 106)

• - Ideal for masonry pros or general contractors.
• - Powerful & versatile. Combining comfort with drilling & hammering.
• - SDS-plus system provides tool-free bit changes with auto bit locking.
• - Three-modes - rotary hammer, drilling, and chiselling.
• - Pistol grip handle compact ergonomic design with soft grip.
• - Variable-speed reversing trigger.
• - Great for small tile removal jobs, concrete drilling & small chipping.

Tool Weight: 3 kgs (7 lbs)
Input Power: 620 watts
Maximum Drilling Diameter: 25 mm (1")
Impact Rate: 0-4850/min
No Load Speed: 0-1000/min
Parts Manual

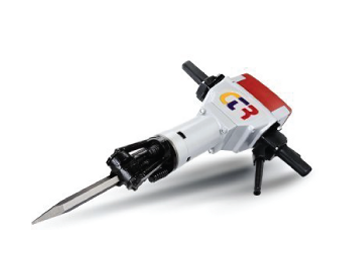

CTR-2911 - 60 lbs Electric Demolition Breaker

(Part #: 94)

• - Portable - doesn't require an air compressor and hose.
• - Shock mounted handles absorbs vibration & reduces fatigue.
• - Accepts standard 1-1/8" Hex chisels.
• - Runs on 115/120V, 15 Amp outlet or 2,500-watt portable generator.
• - Double insulated - complies to GS, EMC, CE & CSA standards.
• - Included with unit is: moil point, 1" chisel and portable rolling cart.
• - Ideal for asphalt work, sidewalks or foundation removal.

Tool Weight: 29 kgs (64 lbs)
Power Requirements: 115/120V AC/DC, 15-Amp
Input Power: 2050 watts
Impact Rate: 1030 bpm
Bit System: 1-1/8" Hex Shank
Complies with GS, EMC, CE & CSA standards
User Manual | Parts Manual

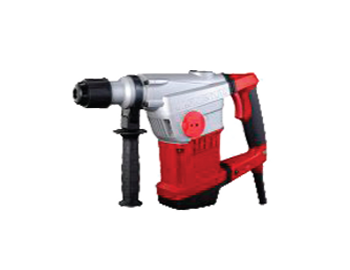

CTR-4011 - SDS-Max Electric Hammerdrill

(Part #: 93)

• - Brand new streamline design.
• - Light weight magnesium alloy design with quick heat dissipation.
• - Double Anti-Vibration System (AVS) reduces fatigue.
• - Extensive soft grip.
• - Overload safety clutch and Auto-stop carbon brushes.
• - Variable-speed.
• - Great for concrete drilling & chipping.

Power Requirements: 120V, 11-Amps, 60 Hz
Impact Rate: 1250-2800/min
Impact Energy Per Stroke: 3-10 J
Nominal Speed: 200-450/min
Maximum Drilling Diameter: 40 mm (1-9/16")
Accessories Included: 16/18/22 mm drill bits, 1 point & 1 chisel
Net Weight: 7.29 kgs (16 lbs)
User Manual | Parts Manual
